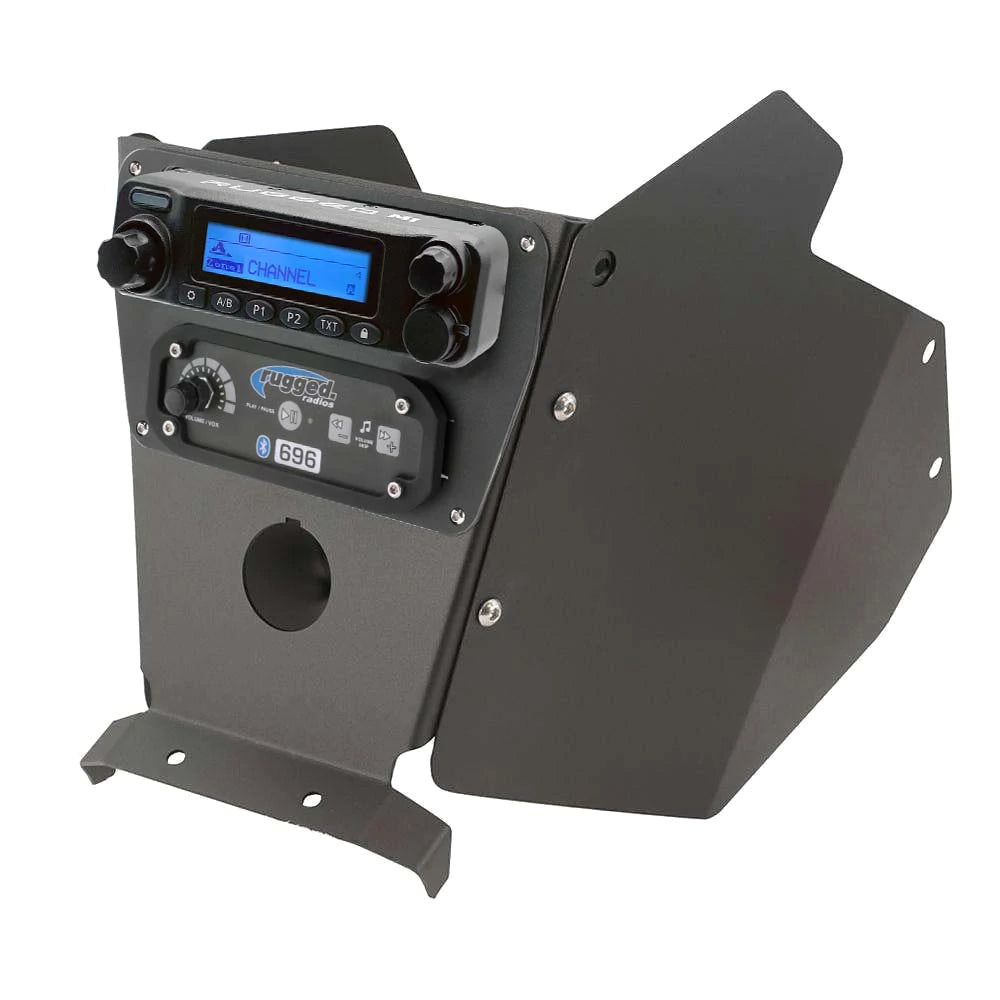

The CanAm X3 Multi-Mount XL System provides a simple and clean installation for your Two-way mobile radio and Rugged intercom system.
Installation is easy!
- Apply the cut template to your center console
- Cut along the dotted lines using a utility knife
- Remove the lower portion
- The Multi-Mount plate slips right into its place and is secured with the included two bolts at the top and the factory two bolts at the bottom.
- Load the Two-way radio and intercom into the insert
- Slide the insert into the mount and secure with the included 4 screws.
- Side panels attach to the mount with two screws and two plastic push pins
Fits These Vehicles:
2017+ CanAm X3, X3 MAX, RR, RS, DS, XMR, XRC
Works With These Radios:
Rugged Radios RM60 / RM45 / GMR45
