Baja Designs Polaris, RZR, XP1000, XP Turbo & Turbo S A-Pillar Kit

$ 509.99
$ 509.99
Shipping calculated at checkout.
Model

***CALL FOR AVAILABILITY***

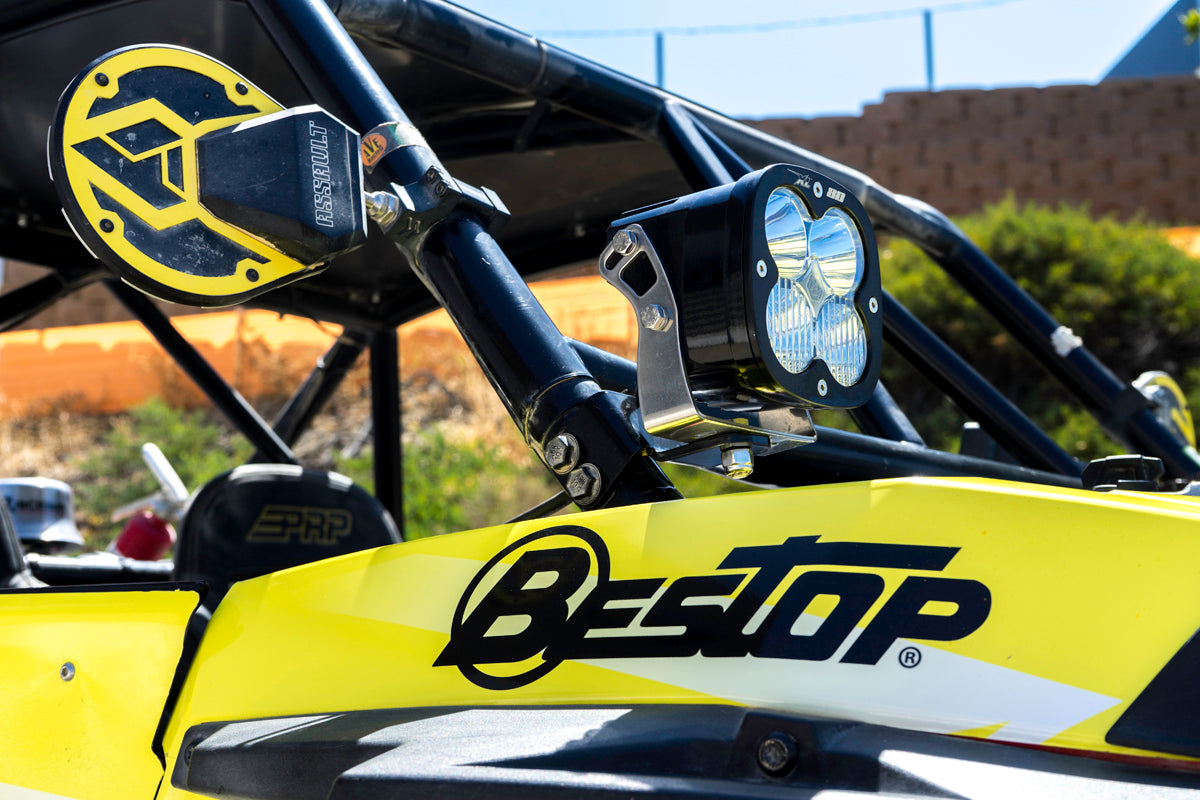

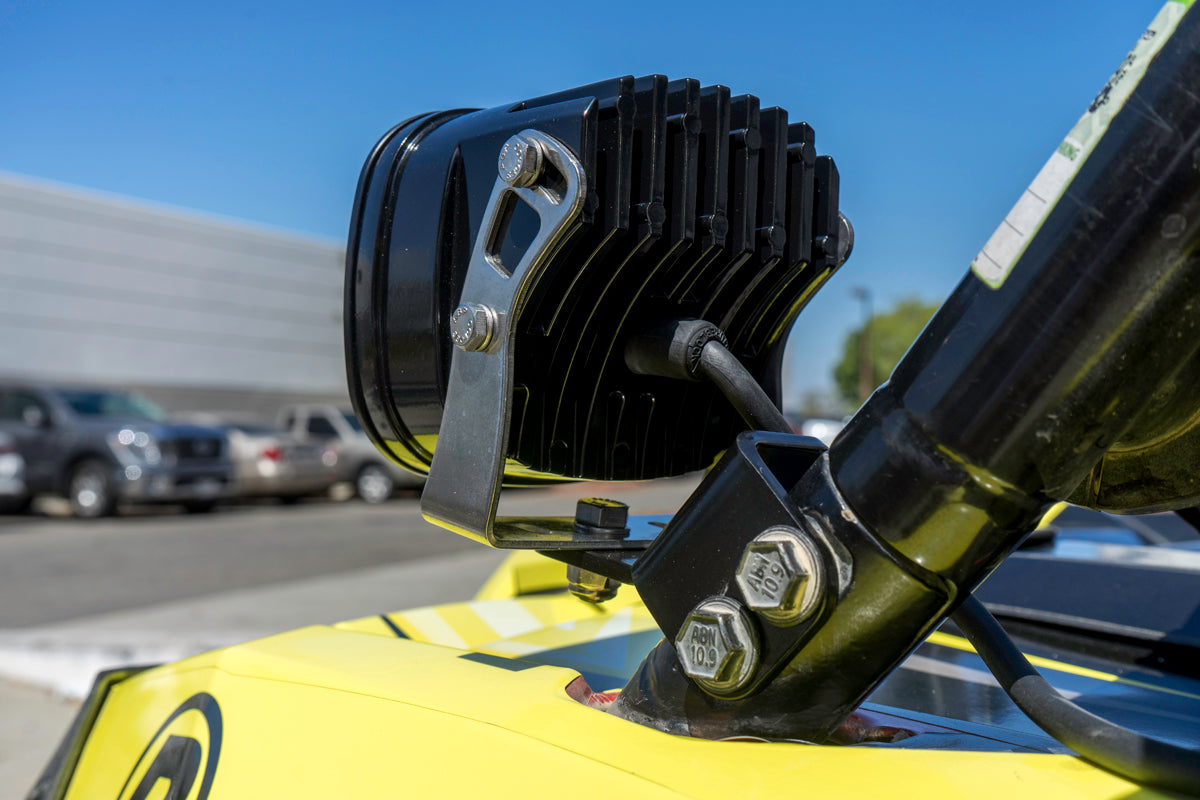

Our engineers came up with a quick, sturdy, and low profile design to mount lights on the cage of your RZR 1000. You will be able to mount these with ease, and have a range of Baja Designs auxiliary lighting to choose from.



Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications(Per Light):
Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

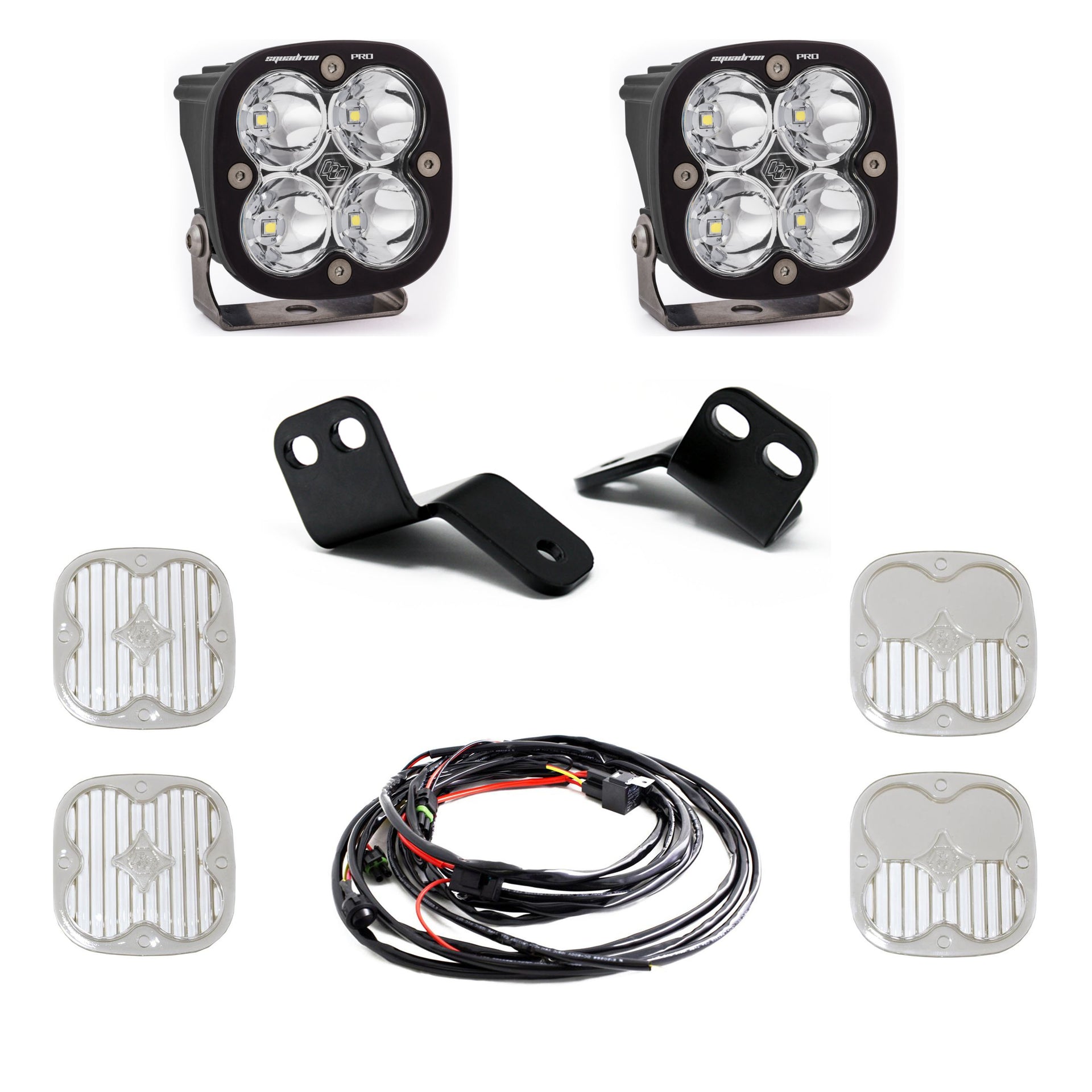

Includes

  • x2 A-Pillar Brackets
  • x2 Squadron Pro Spot LED
  • x2 Squadron Wide Cornering Lens
  • x2 Squadron Driving Combo Lens
  • x1 Wiring harness with Toggle Switch
  • Hardware



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
